EZCap 324B LIVE GAMER RAW PCIe 4K HDMI Video Capture Card
SKU: ezcap324B
د.ك9.900
- Easy Returns
- 100% Authentic Products

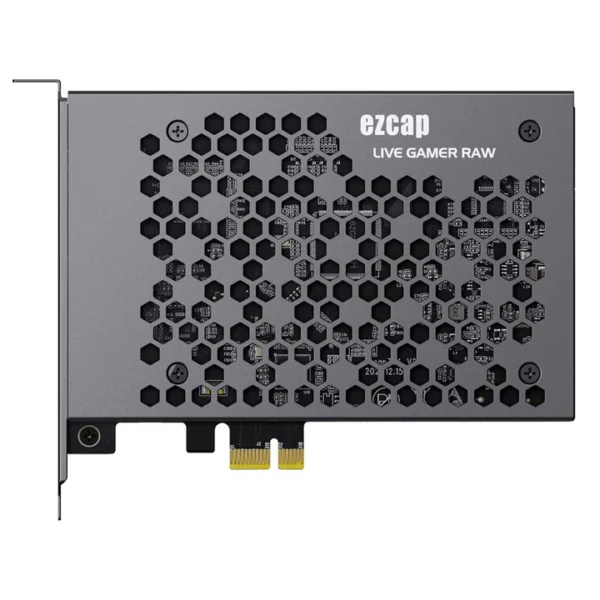

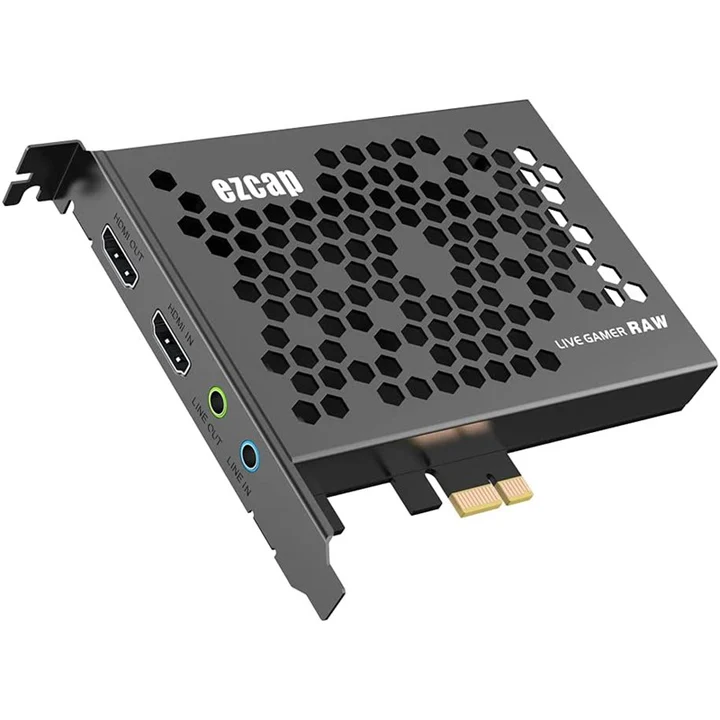

EZCap 324B LIVE GAMER RAW PCIe 4K HDMI Video Capture Card

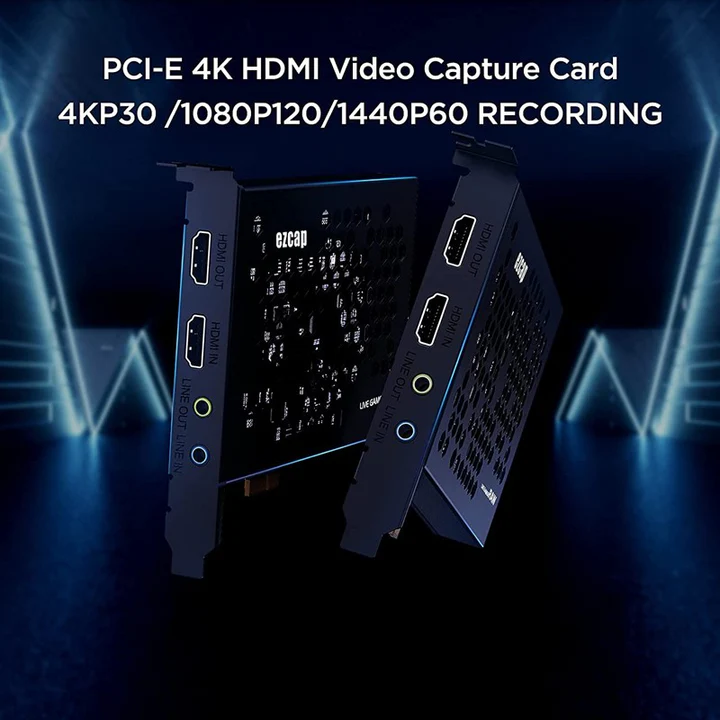

- 2160p30, 1080p120 and 1440p60 HDMI input and pass-through.
- 1080p120, 2160p30 and 1440p60 recording. RGB real color video format up to 1080p30.

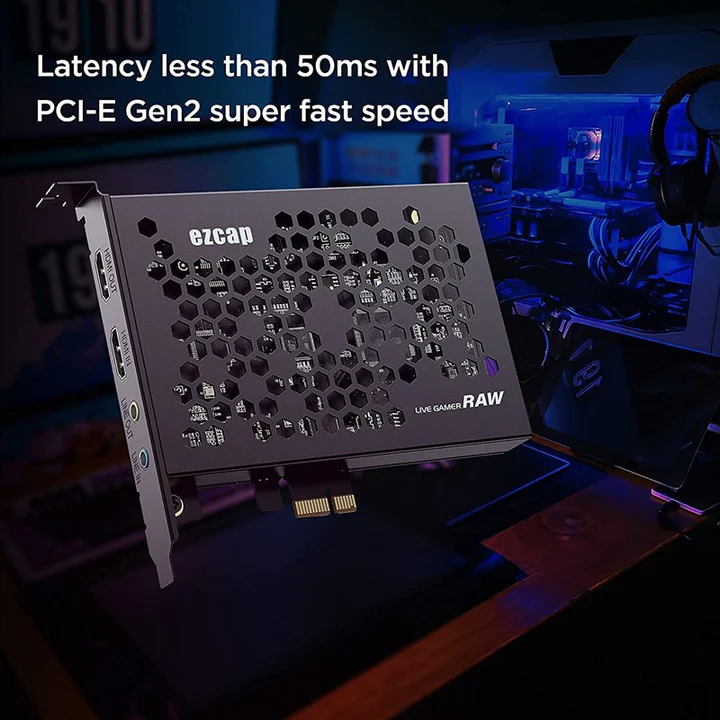

- Latency less than 50ms.

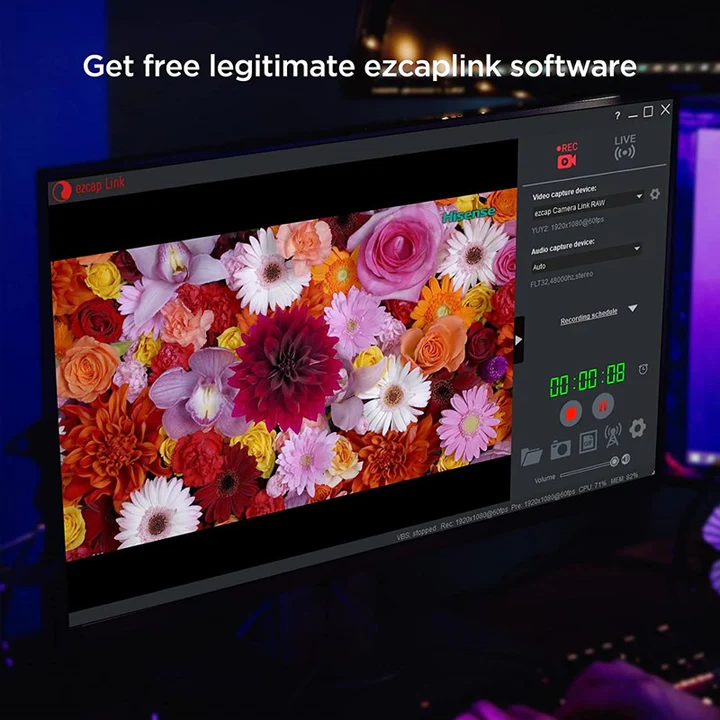

- UVC standard, manual driver installation is not needed. Supports most of third-party video capture softwares.
- PCIe Gen2 super-fast speed.

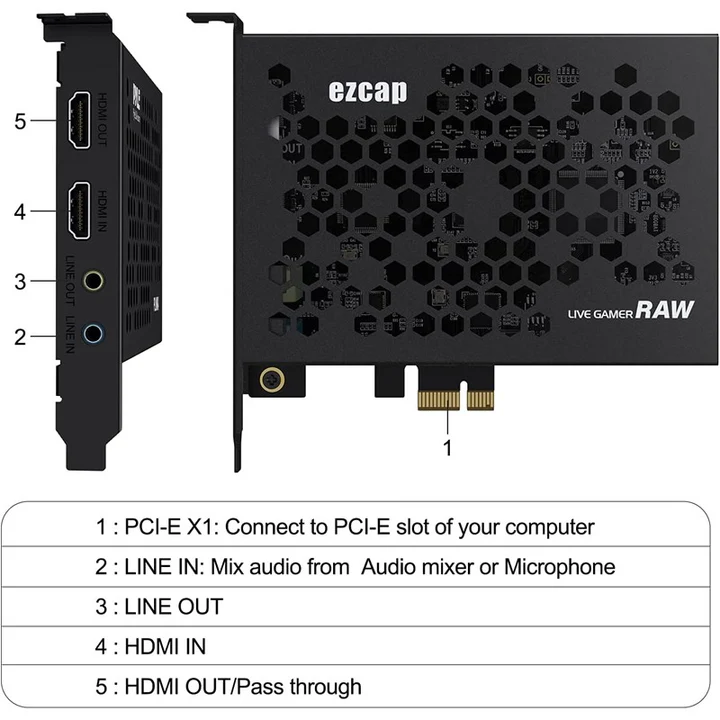

- With Line in and Line out port.
- With colorful breathing indicator.
Specifications:
|
Interface |
PCIe Gen2 X1 |
|
Video Input |
HDMI 1.4 |
|
Audio Input |
HDMI, Line In (3.5 mm TRS) |
|
Video Output |
HDMI 1.4 |
|
Audio Output |
HDMI, Line Out (3.5mm TRS) |
|
Max. Input and Pass-Through |
2160p30, 1440p60, 1080p120 |
|
Max. Recording |
1080p120, 2160p30, 1440p60 |
|
Supported Resolution |
2160p, 1440p, 1080p, 720p |
|
Output Video Format |
YUY2, NV12, RGB |
|
Recording Resolution and Max FPS |
3840×2160 – NV12/30; 2560×1440 – NV12/60, YUY/50; 1920×1080 – NV12/120, YUY/60, XRGB/30; 1280×720 – NV12/60, YUY/60, XRGB/60. |
|
LED status indicator |
RED-power, BLUE-HDMI input, Mixing Slow Flashing-device running. |
|
System Requirement |
Windows 10 x 64, PCI-E X1 slot |
|
For 4Kp30 or 1080p120 recording |
Intel Core i5-6XXX / AMD, Ryzen 3 XXX or above, NVIDIA GTX 1060 / AMD RX 5700 or above, 8 GB RAM. |
|
For 1080p60 recording |
Intel Core i7-3770 recommended, NVIDIA GeForce GTX 650 / AMD Radeon R7 250X or above, 4 GB RAM. |
|
|
Mac Pro, Mac OS High Sierra 10.15 and above, PCI-E X1 slot |
|
Package Contents |
ezcap324 Live Gamer RAW, Manual |
|
Dimensions |
151 x 121 x 22 mm |
