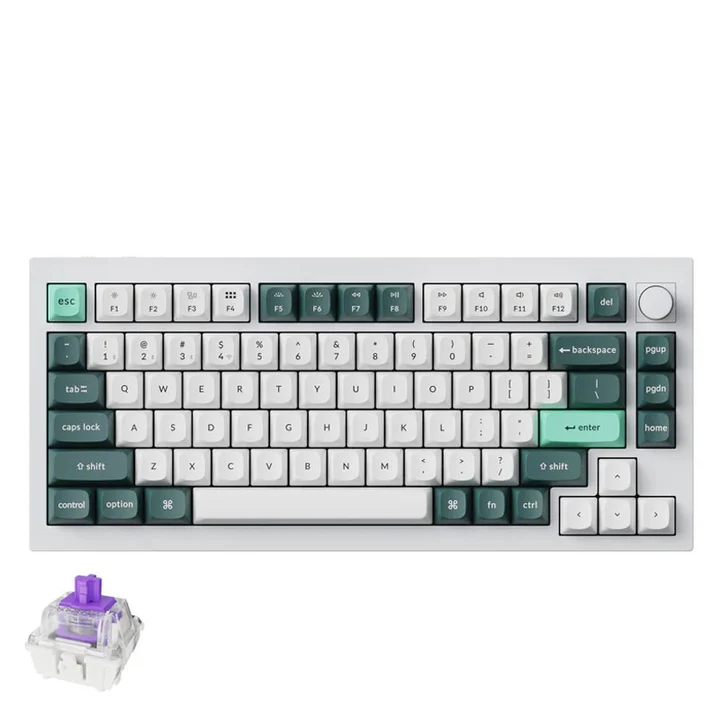

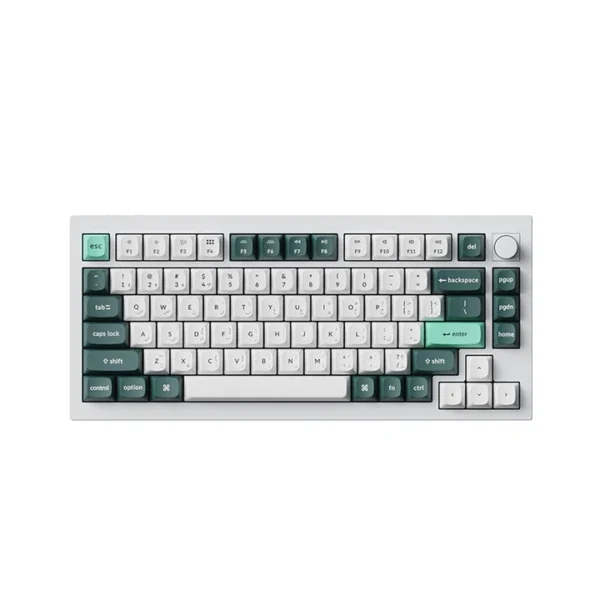

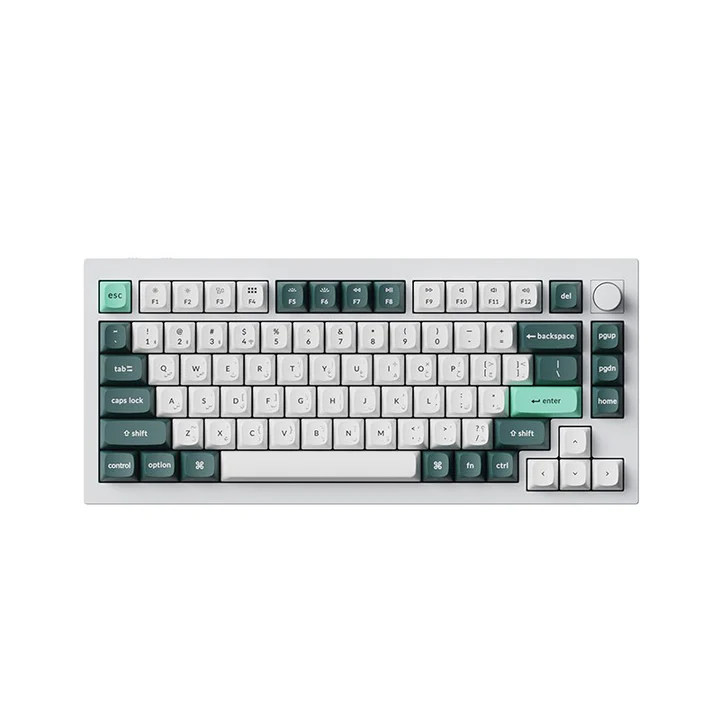

Keychron Q1 HE 75% RGB Backlight Swappable Fully Assembled Knob, QMK Wireless Mechanical Gaming Keyboard (Gateron Double-Rail Magnetic Nebula Switch) – Shell White – English/Arabic Keyboard
![]() |
![]() |
Keychron Q1 HE
Meet the Q1 HE, the world’s first 75% layout wireless QMK custom keyboard equipped with Hall Effect Gateron double-rail magnetic switches. These switches provide a distinct advantage due to their unique mechanism, offering faster feedback, dynamic rapid triggering, and adjustable actuation points, resulting in epic enhancements for the gaming experience tailored to your individual preferences. |
![]() |

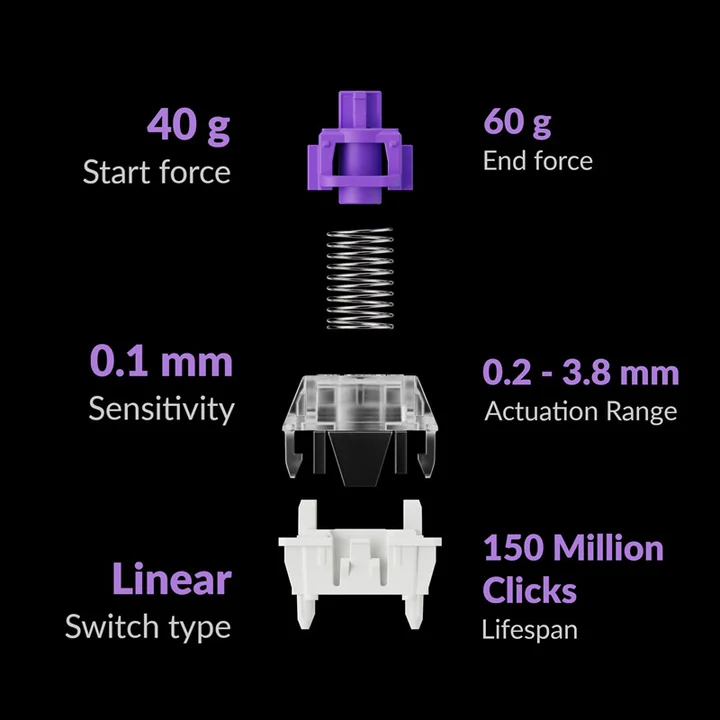

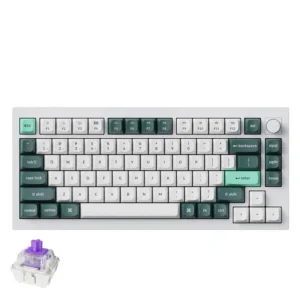

Gateron Double-Rail Magnetic Hall Effect Switches
With the first invented dual-rail structure, and the special pre-lubed, these switches ensure unparalleled stability and smoothness like never before. |
![]() |
2.4 GHz & Bluetooth Connection
Experience peak gaming performance on the fly with the Q1 HE’s 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the Q1 HE via Bluetooth 5.1 to three devices. |
![]() |

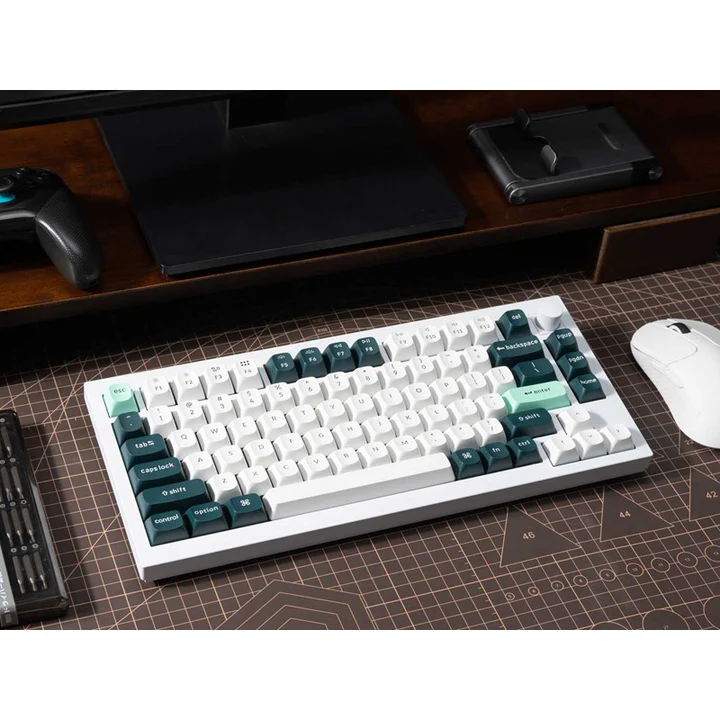

A Piece Of Metal Art
The entire metal body is crafted from 6063 Aluminum, a material known for its increased durability, stability, and premium feel. Not only is this Aluminum more resistant to physical damage, wear, and tear, but it is also environmentally friendly and recyclable. These qualities ensure both aesthetic appeal and a commitment to sustainability. |
![]() |
Suitable for All Devices
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Q1 HE comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system. |
![]() |

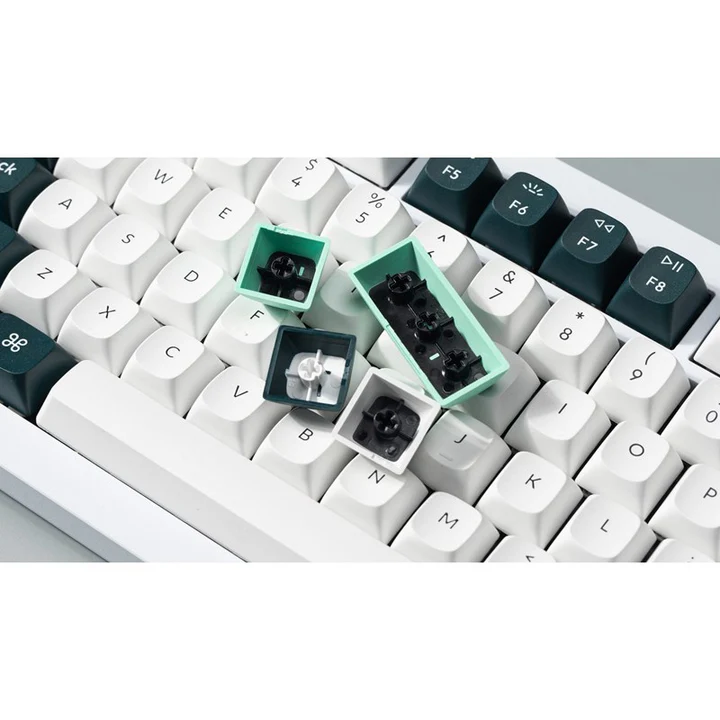

OSA Profile Double-shot PBT Keycaps
It has a similar height to that of the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out. |
![]() |
South-facing RGB LED Lights
The south-facing RGB is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the user installs Cherry-profile alternative keycaps on their keyboard. |
Specifications
Width | 145mm |
Length | 327.5mm |
Front Height (without keycaps) | 22.6mm |
Back Height (without keycaps) | 35.8mm |
Feet Height | 2.4mm |
Angle | 5.2° |
Weight (Fully Assembled) | 1735 g ± 10 g |
Body Material | Aluminum |
Plate Material | Aluminum |
Polling Rate | 1000 Hz (Wired and 2.4GHz) / 90 Hz (Bluetooth) |
N-Key Rollover (NKRO) | Yes for both wireless and wired modes |
Rapid Trigger | Yes |
Adjustable Actuation Points | 0.2 – 3.8mm |
Dynamic Keystrokes | 4-in-1 action keys |
Sensitivity | 0.1mm |
Keycaps | OSA Double-shot keycaps, not shine-through |
MCU | ARM Cortex-M4 32-bit STM32F402RC (256KB Flash) |
Backlight | South-facing RGB LED |
Switches | Gateron double-rail magnetic switch |
Hot-swappable Support | Yes, compatible with Gateron double-rail magnetic switch only. |
Cable | Type-C cable (1.8 M) + Type-A to Type-C adapter |
Connectivity | 2.4 GHz, Bluetooth, Type-C wired |
Bluetooth Version | 5.1 |
Bluetooth Device Name | Keychron Q1 HE |
Battery | 4000 mAh Rechargeable Li-polymer Battery |
Operating Environment | -10 to 50°C |
Wireless Working Time (Backlit Off) | Up to 100 hours |
